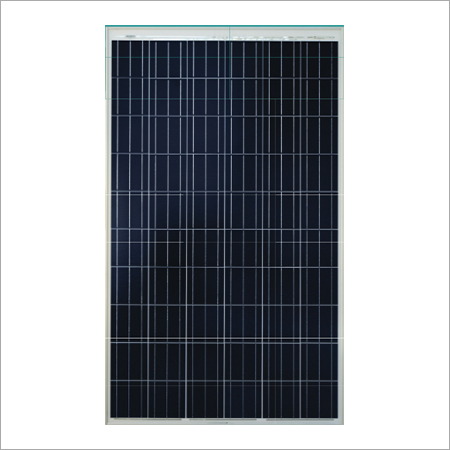

Solar Modules

Solar Modules
Solar Modules
Product Code : TP 250 Series
Brand Name : Tata
Product Description

Over a lone span of time, we have turned into a predominant service provider, wholesaler/distributor and supplier of a wide array of TP 250 Series Solar Modules. Worked by sun powered vitality, these pumps are fabricated under the direction of architects, who hold broad information of this area. To meet the careful requests of clients in effective way, we offer these pumps in diverse particulars. Our offered TP 250 Series Solar Modules is flawlessly planned by devouring top evaluation component inputs and most recent innovation altogether consistence with the quality standards.

Features:

  • Elite
  • Insignificant support
  • Longer service life

Specification :

Modules in the TP250 series

TP240

TP245

TP250

TP255

TP260

Electrical parameters at standard test conditions (STC)

Nominal power output (W)

240

245

250

255

260

Power tolerance (W)

0 ~+5

0 ~+5

0 ~+5

0 ~+5

0 ~+5

Module efficiency (ŋ%)

14.40

14.70

15.00

15.30

15.60

Voltage at PMAX VMPP (V)

29.7

29.9

30.2

30.4

30.6

Current at PMAX IMPP (A)

8.10

8.20

8.30

8.40

8.49

Open-circuit voltage VOC (V)

36.5

36.7

37.3

37.5

37.9

Short-circuit current ISC (A)

8.68

8.70

8.71

8.76

8.80

Electrical parameters at NOCT

Power output PMAX (W)

172.8

176.4

180.0

183.6

187.2

Voltage at PMAX VMPP (V)

26.3

26.4

26.7

26.9

27.1

Current at PMAX IMPP (A)

6.58

6.67

6.74

6.83

6.91

Open-circuit voltage VOC (V)

32.5

32.7

32.8

32.8

32.9

Short-circuit current ISC (A)

7.17

7.27

7.35

7.45

7.55

Temperature coefficient characteristics

NOCT (oC)

47 + 2

Module efficiency (%/oC)

-0.06+ 0.01

Temperature coefficienst of PMAX (%/oC)

-0.4048

Temperature coefficient of VOC (%/oC)

-0.2931

Temperature coefficient of ISC (%/oC)

0.0442

Operating conditions

Maximum system voltage (UL & IEC) (V)

1000 & 1000

Maximum series fuse rating (A)

20

Limiting reverse current (A)

20

Operating temperature range (ºC)

-40 and +85

Maximum static load (snow or wind)

113 psf (5400 Pa)

Module general characteristics

Module dimensions L x W x H (mm)

1667 x 1000 x 40

Module weight (approx) (kg [lbs])

19.4 [42.8]

Number of cells & size

60 cells & 156mm

Frame material

Anodized aluminium

Glass

3.2mm ARC

Junction box

IP67 rated

Cable connector

MC4/MC4 compatible (4mm2)

Packaging details

Number of modules per pallet

26

Number of pallets per 40ft container

28

Box weight (kg)

605

Box dimensions L x W x H (mm)

1700 x 1165 x 1200
