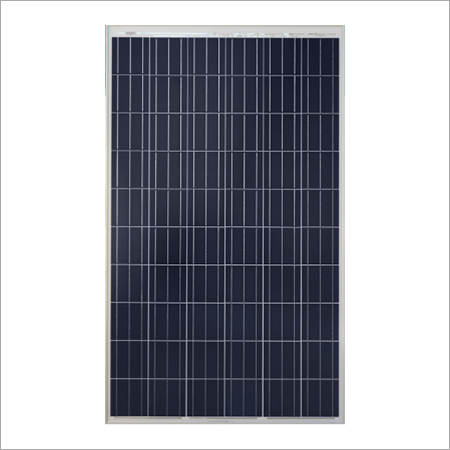

Photovoltaic Solar Modules

Photovoltaic Solar Modules
Photovoltaic Solar Modules
Product Code : TS 250
Brand Name : TATA
Product Description

In a short span of time, we have turned into an incomparable service provider, wholesaler/distributor and supplier are occupied with offering a premium quality array of TS 250 Series Solar Modules. Our offered sun based board is superbly planned by expending top evaluation element inputs and most recent innovation altogether consistence with the quality standards. We are offering this sunlight based board to our profitable clients with number of determinations on client's solicitation. Our clients can take this sun oriented board from us at sensible rates. Our array of TS 250 Series Solar Modules is opportune conveyed to customers end.

Features:

  • Long working life
  • Simple establishment
  • Very solid
  • Smooth operation

Specification :

Modules in the TS250 series

TS 235

TS 240

TS 245

TS 250

Electrical parameters at standard test conditions (STC)

Nominal power output (W)

235

240

245

250

Power tolerance (W)

+2.5

+2.5

+2.5

+2.5

Module efficiency (ŋ%)

14.10

14.40

14.70

15.00

Voltage at PMAX VMPP (V)

29.6

30.0

30.3

30.7

Current at PMAX IMPP (A)

7.95

8.03

8.11

8.16

Open-circuit voltage VOC (V)

37.0

37.3

37.7

38.1

Short-circuit current ISC (A)

8.48

8.52

8.55

8.58

Electrical parameters at NOCT

Power output PMAX (W)

169.2

172.8

176.4

180.0

Voltage at PMAX VMPP (V)

26.2

26.5

26.8

27.2

Current at PMAX IMPP (A)

6.47

6.53

6.60

6.64

Open-circuit voltage VOC (V)

32.5

32.8

33.1

33.5

Short-circuit current ISC (A)

7.04

7.07

7.10

7.15

Temperature coefficient characteristics

NOCT (oC)

47 + 2

Module efficiency (%/oC)

-0.06+ 0.01

Temperature coefficient of PMAX (%/oC)

-0.4383

Temperature coefficient of VOC (%/oC)

-0.3305

Temperature coefficient of ISC (%/oC)

0.0638

Operating conditions

Maximum system voltage (UL & IEC) (V)

600 & 1000

Maximum series fuse rating (A)

20

Limiting reverse current (A)

20

Operating temperature range (ºC)

-40 and +85

Maximum static load (snow or wind)

50 psf (2400 Pa)

Module general characteristics

Module dimensions L x W x H (mm)

1667 x 1000 x 33

Module weight (approx) (kg [lbs])

19.1 [42.1]

Number of cells & size

60 cells & 156mm

Frame material

Anodized aluminium

Glass

3.2mm ARC

Junction box

IP67 rated

Cable connector

MC4 compatible (4mm2)

Packaging details

Number of modules per pallet

28

Number of pallets per 40ft container

20

Box weight (kg)

580

Box dimensions L x W x H (mm)

1750 x 1150 x 1200
